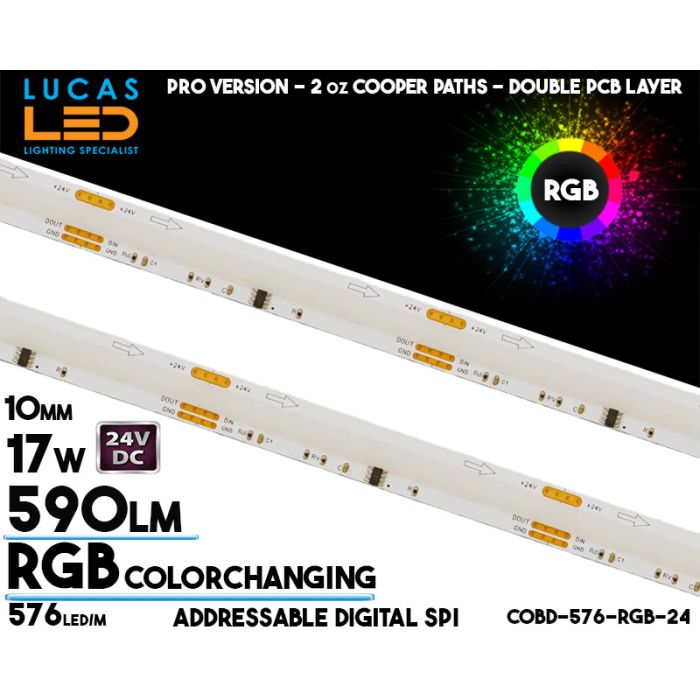

This addressable RGB colour-changing COB LED strip delivers full-spectrum colour on a single spotless 10mm tape, with each section individually controllable pixel by pixel over SPI or DMX. Unlike a standard analog RGB strip that changes the whole run at once, this digital version lets you drive true pixel effects - chases, gradients, animations and colour flow - all from one 24V strip with a dot-free COB face.
|
Parameter |
Value |
|
SKU |
COBD-576-RGB-506 |
|
Chip type |
COB (Spotless) |
|
Light type |
RGB (colour changing) |
|
LEDs per metre |
576 |
|
Voltage |
24V DC |
|
Power per metre |
17W |
|
Luminous flux |
590 lm/m |
|
CRI |
Ra90 |
|
Ingress protection |
IP20 (non-waterproof) |
|
Strip width |
10mm |
|
Copper trace thickness |
2oz |
|
PCB layers |
Double layer (PRO Version) |
|
Control protocol |
Addressable Digital SPI / DMX |
|
Roll length |
30m (full roll) |
Choose this addressable RGB version if you want dynamic, pixel-level colour effects - chases, gradients and animations - rather than a single solid colour across the whole run. If you only ever need static single colours, a standard (non-addressable) RGB strip will be simpler and cheaper to control. This is a pure RGB strip (no dedicated white channel); if you also need a proper white for everyday lighting, pick an RGB+W version, or a CCT tunable strip for white-only tuning. At 10mm wide, it's a slim tape for dry indoor use only (IP20); for moisture-prone areas (bathroom, kitchen splash zones, outdoors), choose a waterproof IP-rated version.
This strip runs on a dedicated 24V DC power supply and cannot be connected directly to mains - size the driver with roughly 20% spare headroom. Because it is addressable, it also needs a compatible SPI / DMX controller or decoder to drive the pixel data; a plain analog RGB controller will not work. Cut only at the marked cut points along the strip, and mount it in a suitable aluminium profile for the best heat dissipation and finish.
Each section of the strip can be controlled individually (pixel by pixel) via an SPI or DMX signal, so you can create effects like chases, gradients and animations, not just one solid colour across the whole run.
A standard RGB strip changes colour as one block. This digital version adds an IC-driven data line so the strip is individually addressable, unlocking true pixel effects.
No — it's a pure RGB strip. You can mix colours toward a white-ish tone, but for a proper, usable white choose an RGB+W or a CCT tunable version instead.
No — it's rated IP20 with no protection against moisture. For wet or outdoor areas, choose a waterproof (IP-rated) version instead.
Yes. It requires an SPI / DMX-compatible controller or decoder to run the addressable effects, plus a standard 24V DC driver for power.
| Color Changing | RGB |
|---|---|
| Watts per meter | 17 |
| Water Resistance | IP20 Non Waterproof |
| Voltage | 24V |
| Lumens per meter | 590 |
| Number of LEDs/ Meter | 528 |
This addressable RGB colour-changing COB LED strip delivers full-spectrum colour on a single spotless 10mm tape, with each section individually controllable pixel by pixel over SPI or DMX. Unlike a standard analog RGB strip that changes the whole run at once, this digital version lets you drive true pixel effects - chases, gradients, animations and colour flow - all from one 24V strip with a dot-free COB face.
|
Parameter |
Value |
|
SKU |
COBD-576-RGB-506 |
|
Chip type |
COB (Spotless) |
|
Light type |
RGB (colour changing) |
|
LEDs per metre |
576 |
|
Voltage |
24V DC |
|
Power per metre |
17W |
|
Luminous flux |
590 lm/m |
|
CRI |
Ra90 |
|
Ingress protection |
IP20 (non-waterproof) |
|
Strip width |
10mm |
|
Copper trace thickness |
2oz |
|
PCB layers |
Double layer (PRO Version) |
|
Control protocol |
Addressable Digital SPI / DMX |
|
Roll length |
30m (full roll) |
Choose this addressable RGB version if you want dynamic, pixel-level colour effects - chases, gradients and animations - rather than a single solid colour across the whole run. If you only ever need static single colours, a standard (non-addressable) RGB strip will be simpler and cheaper to control. This is a pure RGB strip (no dedicated white channel); if you also need a proper white for everyday lighting, pick an RGB+W version, or a CCT tunable strip for white-only tuning. At 10mm wide, it's a slim tape for dry indoor use only (IP20); for moisture-prone areas (bathroom, kitchen splash zones, outdoors), choose a waterproof IP-rated version.
This strip runs on a dedicated 24V DC power supply and cannot be connected directly to mains - size the driver with roughly 20% spare headroom. Because it is addressable, it also needs a compatible SPI / DMX controller or decoder to drive the pixel data; a plain analog RGB controller will not work. Cut only at the marked cut points along the strip, and mount it in a suitable aluminium profile for the best heat dissipation and finish.
Each section of the strip can be controlled individually (pixel by pixel) via an SPI or DMX signal, so you can create effects like chases, gradients and animations, not just one solid colour across the whole run.
A standard RGB strip changes colour as one block. This digital version adds an IC-driven data line so the strip is individually addressable, unlocking true pixel effects.
No — it's a pure RGB strip. You can mix colours toward a white-ish tone, but for a proper, usable white choose an RGB+W or a CCT tunable version instead.
No — it's rated IP20 with no protection against moisture. For wet or outdoor areas, choose a waterproof (IP-rated) version instead.
Yes. It requires an SPI / DMX-compatible controller or decoder to run the addressable effects, plus a standard 24V DC driver for power.
