Corners LED Profile "C" INOX GOLD Aluminium 2.02m

Name: LED Profile • CORNERS • "C" • INOX GOLD • Aluminium • 2.02 Meters length • PRO • multi set •
SKU: LUMINES-C2-I

Be the first to review this product

From €25.17 €20.46

To €41.57 €33.80

In stock

SKU

LUMINES-C2-I

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Customize LED Profile • CORNERS • "C" • INOX GOLD • Aluminium • 2.02 Meters length • PRO • multi set •

LED PROFILE 2M & BASIC DIFFUSER PMMA OPTION

Quantity

ENDCAPS

Quantity

MOUNTING

Quantity

* Required Fields

Your Customization

LED Profile • CORNERS • "C" • INOX GOLD • Aluminium • 2.02 Meters length • PRO • multi set •

In stock

Qty

- +

€25.17 €20.46

Summary

Details

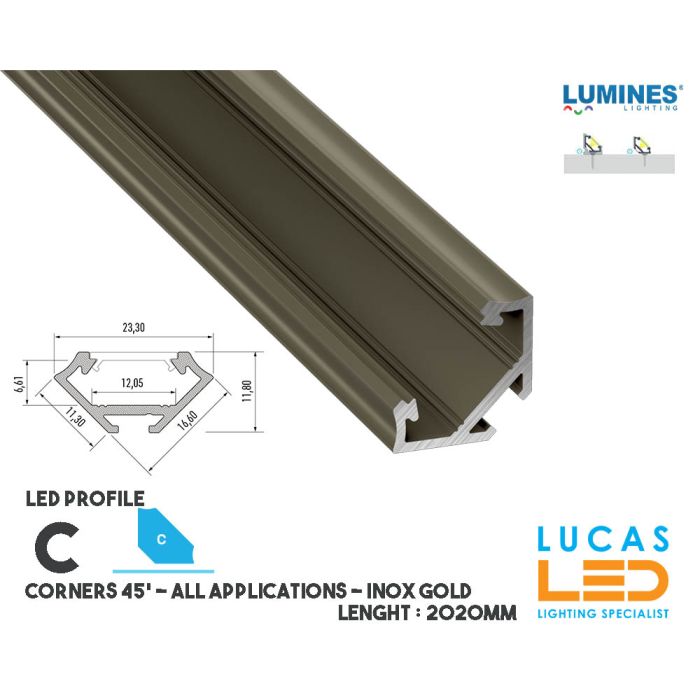

LED Profile • CORNERS • "C" • INOX GOLD • Aluminium • 2.02 Meters length • PRO • multi set • Led Profile channel for Led Strip lighting.

Led Profile C is an angle profile 45 degrees - for lighting kitchens and stores. Ideal for lighting shelves and countertops. Perfectly suitable for designer connections of two perpendicular surfaces and all applications where a light coming from the profile at a 45° angle is required.

The small height of this profile and the flat cover (mounted from the top with a snap-on) give the impression of a very discreet fixture for LED strips and tapes. It is perfectly suited for use as an element of decorative backlights in furniture and interior decorations.

LED strip width:
• up to 12 mm

SPECIFICATIONS:

Color variations:
- nonanodized,
- anodized silver,
- anodized black,
- anodized inox,
- lacquered white (RAL9016)

Mounting:
pressed on to the milled hole or by adhesive tape

ACCESORIES:

• COVERS (diffusers)

• BASIC
* transparent (PMMA/PC),
* frozen (PMMA/PC),
* milky (PMMA/PC),
* frosted (PMMA),

* milky frosted (PMMA),
* lens 15 (PMMA),
* lens 30 (PMMA),
* black (PMMA)

• HIGH
* transparent (PMMA),
* frozen (PMMA),
* milky (PMMA),
* frosted (PMMA),
* milky frosted (PMMA),
* black (PMMA)

Mounted from the top, snap-on.

END CAPS:
• aluminium or plastic caps with or without a hole in 5 color variations (white, black, inox, silver)

MOUNTING CLIPS:
mounting clip CH,
metal mounting clip CH,
angled mounting clip CH

OTHER ACCESORIES:
• hinge,
• contactless switch,

• pendants,

Profile is sold in standard lengths: 2020 mm.
There is a possibility of cutting the profiles to any size.

Compatible products:

Installation diagrams

Installation manual for C profile with BASIC cover, using double-sided tape

The end result of assembly of corner profile C with a BASIC cover using double-sided tape

Installation manual for corner C profile with BASIC cover, using (1) plastic mounting clip CH, (2) metal mounting clip CH

The end result of assembly of corner profile C with a BASIC cover using using (1) plastic mounting clip CH, (2) metal mounting clip CH

Examples of mounting the profile C on the surface of a step

Connecting profiles C with a BASIC cover at 90°

fig. 7

Assembly scheme for elements of the lighting system using profile C and (1) a BASIC cover, (2) a LED strip, (3) an end cap with hole, (3a) an end cap without hole, (4) a screw, (5) a mounting clip CH
