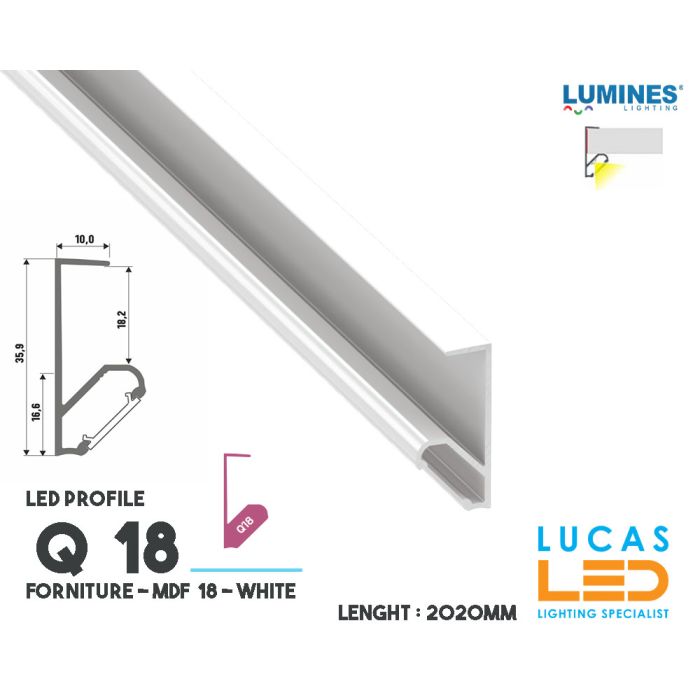

Special App LED Profile • FURNITURE • "Q18" • WHITE • Aluminium • 2.02 Meters length • PRO • multi set •
From €41.91 €34.07
To €57.58 €46.81
In stock
LED Profile • SPECIAL APP • FURNITURE • "Q18" • WHITE • Aluminium • 2.02 Meters length • PRO • multi set • channel for Led Strip lighting
LED strip width:
• up to 12 mm
Compatible products:
SPECIFICATIONS:
Color variations:
- nonanodized,
- anodized silver,
- anodized black,
- anodized inox,
- lacquered white (RAL9016)
Accessories
COVERS (diffusers):
- BASIC
* transparent (PMMA/PC),
* frozen (PMMA/PC),
* milky (PMMA/PC),
* frosted (PMMA),
* milky frosted (PMMA),
* lens 15 (PMMA),
* lens 3 (PMMA),
* black (PMMA)
Mounted from the top, snap-on.
Profile is sold in standard lengths: 1000 mm, 2020 mm, 3000 mm.
There is a possibility of cutting the profiles to any size.
INSTALLATION DIAGRAM:
Installation instruction for corner profile Q18 with a BASIC cover using a double-sided tape
The end result of installation of profile Q18 with a BASIC cover using a double-sided tape
Installation instruction for corner profile Q18 with a BASIC cover using a mounting glue
The end result of installation of profile Q18 with a BASIC cover using a mounting glue
The method of connecting Q18 profiles with a BASIC cover with a shelf
Diagram of the power cord routing with the assembly of the lighting system with the use of the Q18 profile, LED strip and Basic cover
Assembly diagram of the lighting system using the Q18 profile, (2) LED strip, (1) Basic cover and (3) double-sided mounting tape
Body colour | White lacquered Ral 9016 |
---|---|
Width | 10.00 |
Depth & High | 35.9 |
Max Strip Width | 18.2 |
