LED Touch Panel Switch • RGB+CCT • MiBoxer • 4 zone • 2.4G • Wireless • Compatible • Smart Lighting System • MultiZone • T4

€38.13 €31.00
In stock
SKU
T4
- +

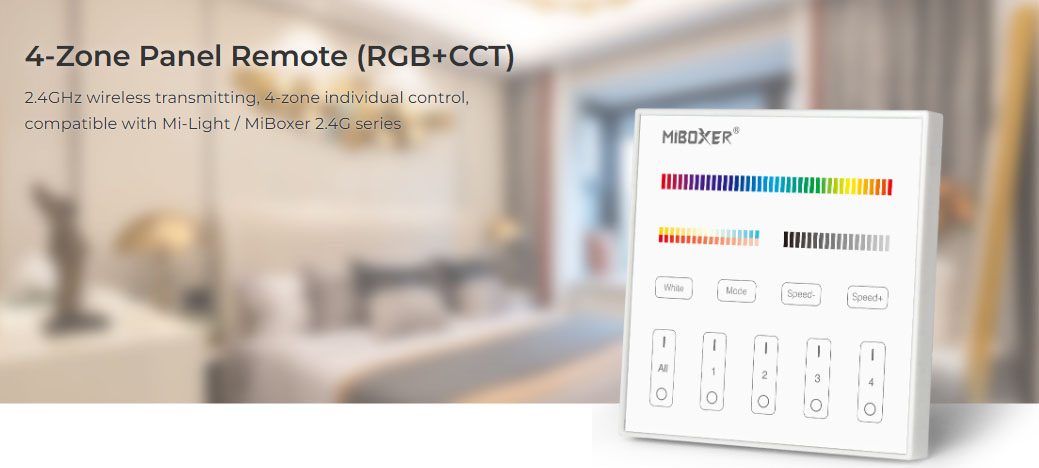

Wall mounted controller RGB+CCT 4-zone 230V T4

RGB & CCT Color Adjust Smart Touch Panel Remote Controller • MiLight 4 Zone T4 • Wall mounted • 230V •

Wall mounted 4 Zone Remote Controller operated for RGB and Single color (any white colors). Compatibile with RGB controllers FUT037 , RGBW controllers FUT038 , CCT controllers FUT035     & Single  controllers  FUT036.

RGB & CCT  LED Controller:

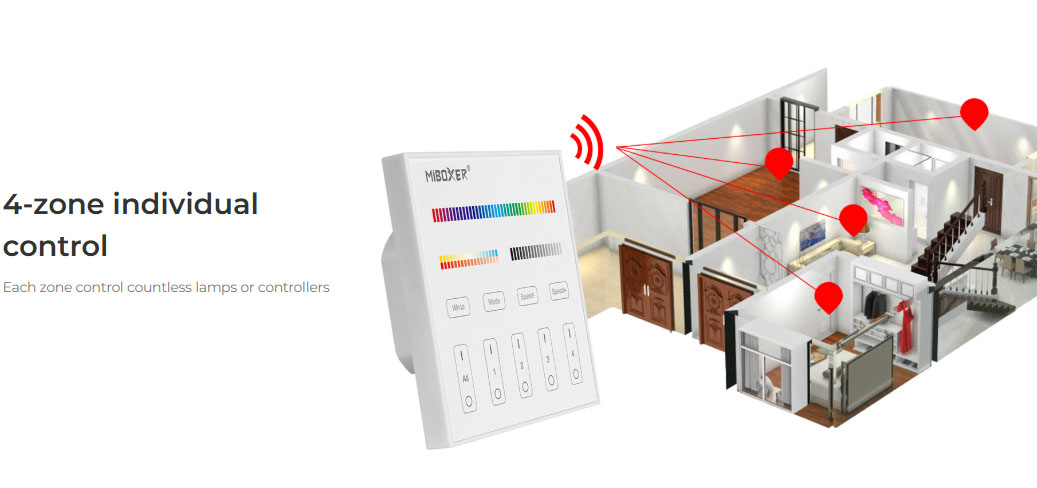

This Touch Panel working on 230V , and communicate by radio Signal 2.4Ghz . That mean Panel  be catch all  controllers to 30 , and can be completly at different location than your LED strips lighting , eg. Wall Panel is installed by doors ,and your Controller for a strips lighting can be  at others location in room up to 4 zone , with each  zone reqiured  One controller.

Application :

Depending of Application with multi Zone Panel u can control every lighting system & Colors.Let say :

1. Warm White (Kitchen Cabinet)

2. RGB ( cieling edge)

3. E27 Bulb RGB-CCT (Pendant)

4. GU10  Spotlight RGB-CCT.



Smart Lighting series:




























Compatible products:





















SPECIFICATION

Symbol: T4

ETIM CLASS: Controller for luminaires

Input voltage: 180 - 240V AC

Control distance: 30m

Transmission Frequency: 2400MHz

Transmitting Power: 6dBm

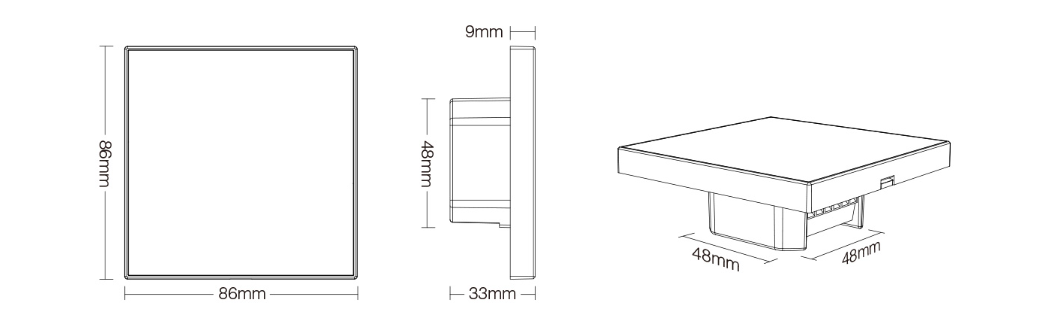

Length: 86mm

Width: 86mm

Height: 33mm

Weight: 0.195kg



More Information
Water Resistance IP20 Non Waterproof
LED Strips Compatibility RGBCCT
Zones 4 Zone
Power by 230V
Body colour White lacquered Ral 9016
Shape Square / Cube
Light Built In No
