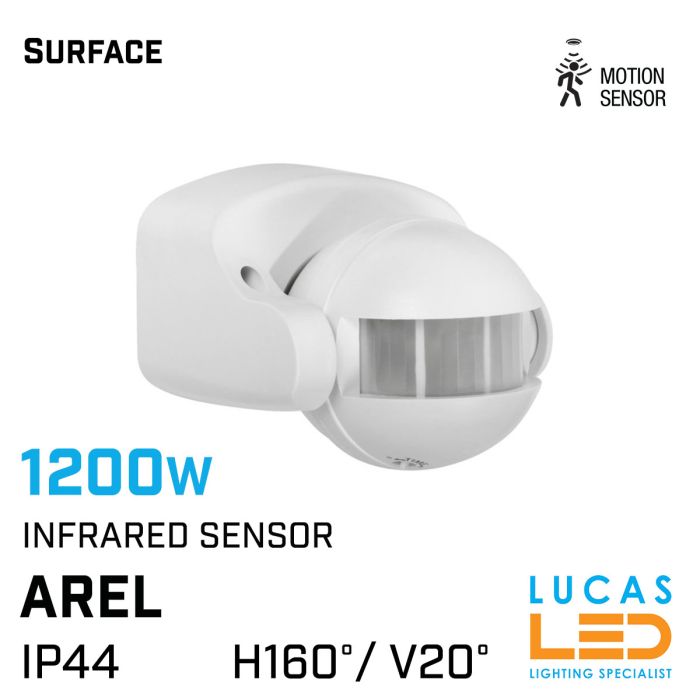

Outdoor PIR Infrared Motion Sensor - 1200W - IP44 waterproof - horizontal angle 160° - AREL White

Outdoor PIR Infrared Motion Sensor ALER - max. 1200W - beam angle H160°/V20° - Sensor range max. 12m - IP44 waterproof - movement detector - surface wall &  ceiling switch light.

Small, simple motion detector AREL with a 160° detection angle. It is suitable for outdoor use due to IP44 waterproof. The sensor head can be swivelled vertically up & down, allowing better alignment. The switching time can be set between 8 seconds and 7 minutes.

GENERAL DATA:

Colour: white
Place of assembly: wall mounted
Place of application: Indoors and outdoors
Micro-interval between relay contacts: yes
Width [mm]: 97
Height [mm]: 75

TECHNICAL DATA:

Rated voltage [V]: 220-240 AC
Rated frequency [Hz]: 50
Class of protection against electric shock: II
Material: plastic
Ambient temperature range to which the product can be exposed: -20÷40
Sensor type: PIR
Connection type: Bolt terminal block
Range of sections of wires used [mm²]: 1÷2,5
Sensor-operation time [second-minute]: 8-7
sensor working angle [°]: H160/V20
Maximum operating time [min]: 7
Minimum operating time[s]: 8
Maximum power [VA]: 1200
Illumination-level setpoint by which the sensor detects movement [lx]: 3-2000
IP class: 44
Sensor range[m]: max 12
