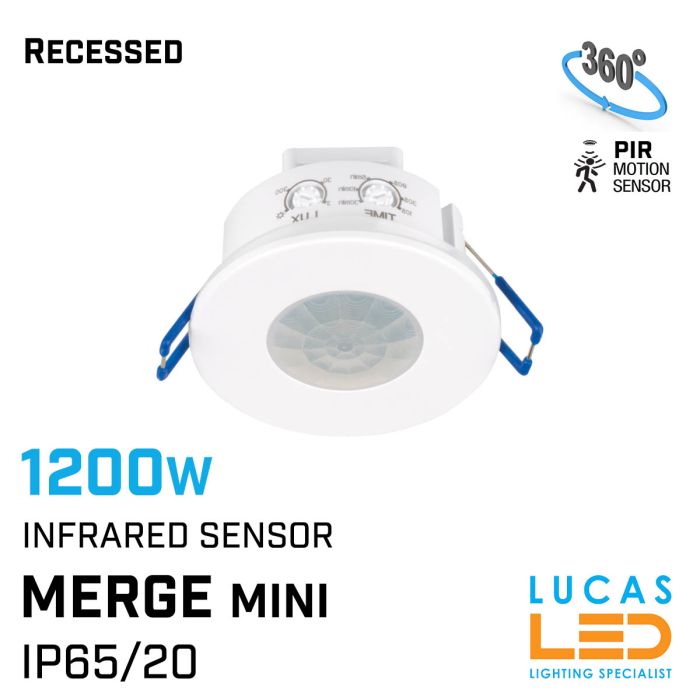

PIR Infrared Motion Sensor MERGE Mini 1200W - IP65/20 - Movement detector - Light Switch.
PIR Infrared Motion Sensor MERGE Mini 1200W - IP65/20 outdoor & indoor - recessed ceiling mounted - Movement detector - Light Switch.
Compact infrared motion sensor MERGE Mini. The maximum detection range is 8 meters, and the horizontal detection angle is 360 degrees. You can adjust the lighting duration and the light intensity level at which the sensor operates. The sensor's advantage is its high IP65 rating.
GENERAL DATA:
Colour: white
Place of assembly: Recessed mount in the ceiling
Place of application: Indoors and outdoors
Micro-interval between relay contacts: yes
Height [mm]: 49
Diameter [mm]: 76
TECHNICAL DATA:
Rated voltage [V]: 220-240 AC
Rated frequency [Hz]: 50
Class of protection against electric shock : II
Material: plastic
Ambient temperature range to which the product can be exposed: -20÷40
Sensor type: PIR
Connection type: Terminal block
Range of sections of wires used [mm²]: 0,75÷1,5
Sensor-operation time [second-minute]: 10-30
sensor working angle [°]: H360
Maximum operating time [min]: 30
Minimum operating time[s]: 10
Maximum power [VA]: 1200
Illumination-level setpoint by which the sensor detects movement [lx]: 3-2000
IP class: 65/20
Sensor range[m]: max 8
Watts | 1200 |
---|---|
Voltage | 220V - 240V |
IP Rated | IP65/68 |
Light Built In | No |
Body colour | White |
Shape | Round / Cylinder |
