Programmable room thermostat for infrared heating film

Availability: In stock
Only 3 left
SKU:
TD-T 02/White
€58.08 €48.00

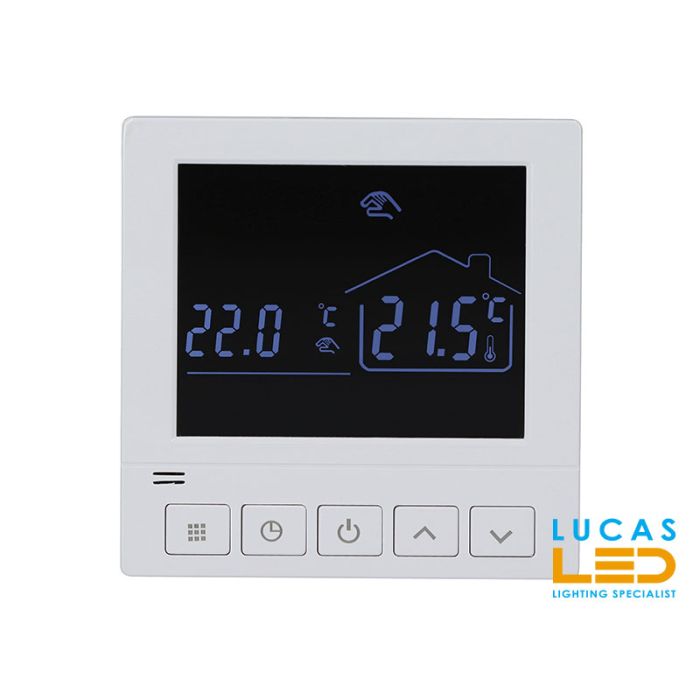

 Programmable room thermostat HD-T02, Wired thermostat with built-in battery and HD-T02 air and floor temperature sensor

Manual wired thermostat with LCD display for controlling electric floor heating or electric heaters. The thermostat has a built-in air temperature sensor and a wired NTC floor temperature sensor. Intuitive programming of the room temperature (5 + 2) or manual control. Used for underfloor heating, heating foils, heating panels, heating mats.

The thermostat is equipped with batteries which makes it possible to maintain all set control parameters in the event of a power outage.

The thermostat has a built-in air temperature sensor and an external floor temperature sensor attached. The thermostat can control both the room temperature and separately control the floor temperature.

When the thermostat is used in underfloor heating, the thermostat switches the heating system on to obtain the set temperature in the room while preventing the set floor temperature from being exceeded, thus protecting the floor from too high a temperature.

When the thermostat is used in heating electric heaters, only the built-in air temperature sensor is used.

>230 V power supply
>Max load 16 A (3600 W)
>Built-in battery supporting all set control parameters.
>Controlling air and floor temperature together or separately.
>Programming days (5 + 2) or manual control.
>Flush mounting
>Warranty: 24 months

 Programmable room thermostat HD-T02

Product description:


>230 V power supply
>Max load 16 A (3600 W)
>Built-in battery supporting all set control parameters.
>Controlling air and floor temperature together or separately.
>Programming days (5 + 2) or manual control.
>Flush mounting
>Warranty: 24 months
>Accuracy: ±1℃
>Hysteresis range: -9°C to 9°C
>Floor temp. range: 5-95℃
>Range of high floor temp. limitation: 5-60℃
>Room temp. range: 5-35℃
>Protection class: IP20
>Max. Load: 16 A
>Power supply: 220~240V
>Build in battery: YES
>Warranty: 24 months

Thermostat operating modes:
IN- Temperature control via internal sensor. The built-in air temperature sensor controls the room temperature, while the floor sensor is turned off. This mode is used in all types of electric heating except underfloor heating
OU- Temperature control via external sensor. The external NTC temperature sensor controls the floor temperature, while the room air sensor is switched off. This mode is used in underfloor heating to control only the floor temperature.
AL - built-in air temperature sensor controls the room temperature and the floor sensor limits the floor temperature. Mode used in electric floor heating.

Set contains:
Thermostat with a built-in air temperature sensor
Outdoor temperature sensor - floor NTC
Box
Mounting screws
Manual

Application:
Underfloor heating with HEAT DECOR heating foil
Electric heaters
Heating cables
Heating mats
230 V electric devices controlled on / off
