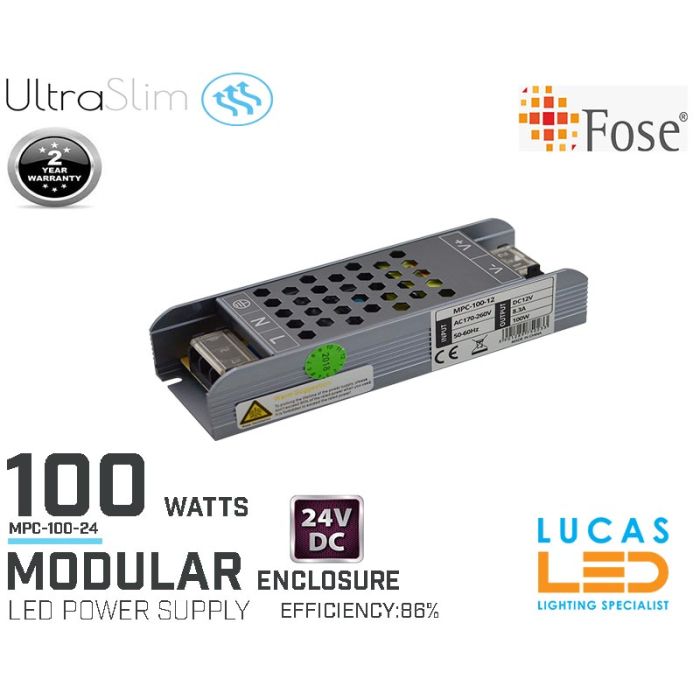

100 watts LED Driver Power Supply • 4.16A • DC 24V for LED Strips •
LED Driver Power Supply • 100 watts • 4.16A • DC 24V for LED Strips •
LED Power Supply 100 watts , 24V DC , 4.16A , IP20. Slim Design. Indoor use. Ideal for medium lenghts LED Strips. Driver can supply up to 20 m LED strips (max 100 watts ) depending of lenght. Friendly for electrician, fast & easy connection terminal.
Designed for indoor use , slim design , easy to hide.
Protections: Short circuit, Overload, Over temperature
Cooling by free air convention
100% full load burn-in test
Warranty 24 months
Dimensions: 140mm - 49mm - 29mm
Weight: 0,22 kg
Specification:
|
Parameter |
Value |
ETIM ID |
|---|---|---|
|
Symbol |
MPC-100-24 |
|
|
EAN13 |
5901289750240 |
|
|
ETIM CLASS |
DC-power supply |
EC002540 |
|
Rated supply voltage |
170-250V AC/47 ~ 63HzV |
EF007076 |
|
Voltage type of supply voltage |
DC |
EF000187 |
|
Power output |
100W |
EF003034 |
|
Housing |
Metal housing |
EF000150 |
|
Suitable for outdoor use |
no |
EF003532 |
|
Length |
140mm |
EF001438 |
|
Width |
49mm |
EF000008 |
|
Height |
29mm |
EF000040 |
|
Weight |
0.22kg |
EF000167 |
|
Protection class |
yes |
EF000004 |
|
Output voltage |
24 |
EF000187 |
|
Max. output current |
4.2A |
EF008284 |
|
Efficiency |
86% |
| Voltage | 24V |
|---|---|
| Water Resistance | IP20 Non Waterproof |
| Wattage | 100 |
| Warranty | 2 Years |
| Body | Enclosed Modular |
