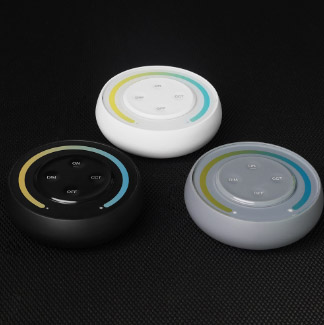

LED Wheel Dimmer • CCT • MiBoxer • 1 zone • 2.4G • Wireless • S1-W • White edition
CCT Color Adjust Smart Wheel Dimmer Remote Controller • MiLight 1 Zone S1-W • Wall mounted• 2xAAA • White edition •

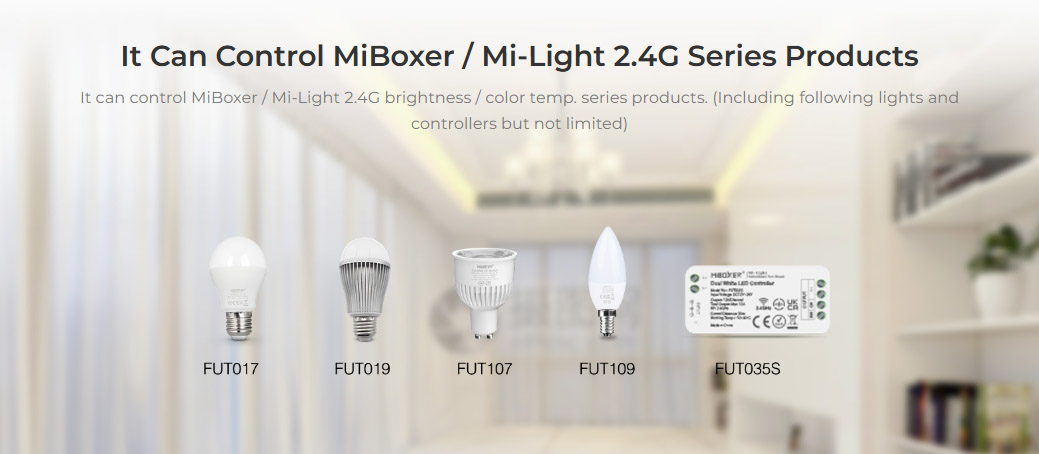

Wall mounted 1 Zone Remote Controller operated for RGB and Single color (any white colors). Compatibile with RGB controllers FUT037 , RGBW controllers FUT038 , CCT controllers FUT035 & Single controllers FUT036.
CCT LED Controller:

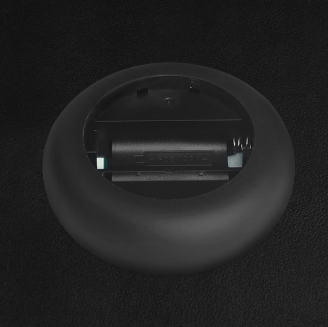

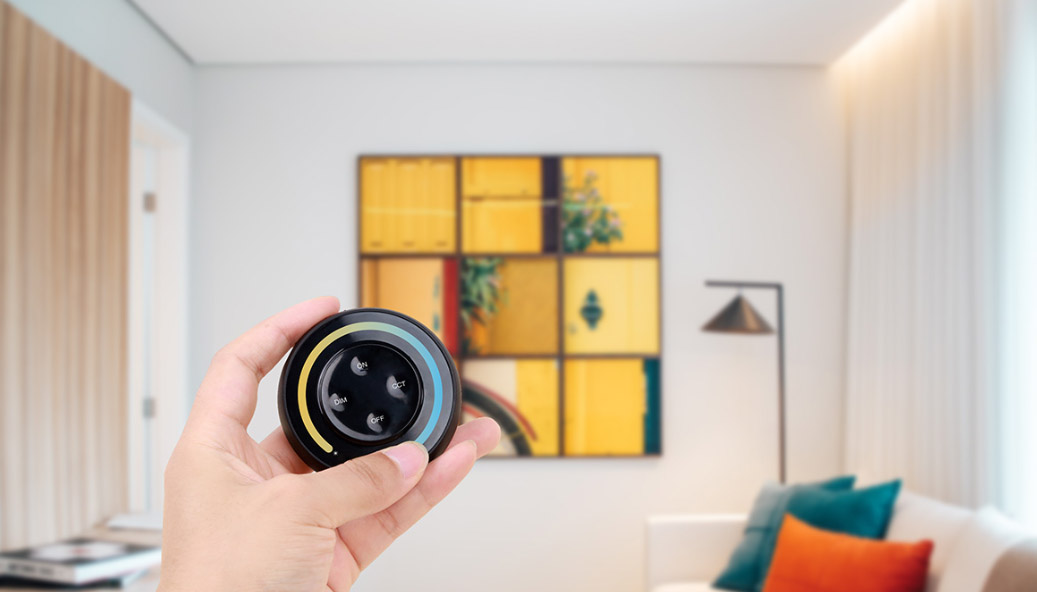

This Touch Panel working on 2 xAAA batteries , and communicate by radio Signal 2.4Ghz . That mean Panel be catch all controllers to 30 , and can be completly at different location than your LED strips lighting , eg. Wall Panel is installed by doors ,and your Controller for a strips lighting can be at others location in room up to 1 zone , with each zone reqiured One controller.
Smart Lighting series:
Compatible products:
SPECIFICATION
Symbol: S1-W
ETIM CLASS: Controller for luminaires
Input voltage: 3V (2 * AAA)
Control distance: 30m
Transmission Frequency: 2400MHz
Transmitting Power: 6dBm
Length: 86mm
Width: 86mm
Height: 17mm
Weight: 0.185kg
Water Resistance | IP20 Non Waterproof |
---|---|
LED Strips Compatibility | CCT |
Zones | 1 Zone |
Power by | Battery |
Body colour | White lacquered Ral 9016 |
Shape | Round / Cylinder |
Light Built In | No |
