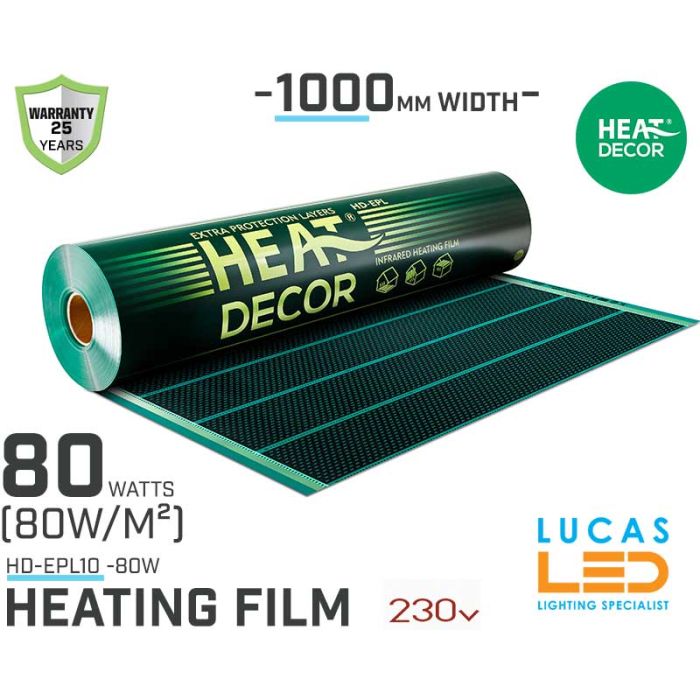

Heating film EPL • 80 W/lm • 1000mm WIDTH • Heat mat • 25y Warranty • (80w/m²) • Heat Decor • HD-EPL100

€57.27 €46.56
In stock
SKU
HD-EPL100-80w
Meters
- +

Product description - HDEPL100 heating film 80W/m² with connected wires – 1000mm


The Heat Decor heating film set is designed for electric floor and wall heating of rooms. Heating film sets have a basic assortment for the implementation of infrared heating installations. Heating film sets come in variants that differ in terms of the surface of the heating film and the amount of installation assortment matched to the film surface. Prepared sets of Heat Decor heating films enable quick and convenient selection of the necessary materials for the installation of floor and wall heating in the room.

The Heat Decor heating film model HDEPL100 has a modern heating structure which guarantees even heat distribution and safe and trouble-free operation.

Heat Decor heating film HD-EPL series
(Extra Protection Layers)

In response to the need for faultless installation in more demanding places, for example under the spout, HD-EPL heating films were created. They are distinguished by a reinforced structure based on the flagship model HD-G of the Heat Decor heating films. In HD-EPL heating films, we have used additional reinforcing layers, increasing the film's resistance to mechanical damage and increasing its electrical insulation.

We have increased the density of the PET film structure, giving it a more stiff character and maintaining its elastic properties at the same time. HD-EPL heating films are 0,450 mm thick, which makes them very strong and durable.

In addition to increased durability, HD-EPL films are characterized by a proven far-infrared radiation construction with an excellent grid-like "carbon-h HD " (1) graphite heating matrix, which allows even heat distribution on the surface of the cladding used.

HD-EPL series heating films, thanks to their reinforced structure, are dedicated to underfloor heating under the spout. Increased strength parameters of the heating film, such as thickness and stiffness, make HD-EPL heating films also perfect for a floor system under a layered board or SPC vinyl panel, where an appropriate load-bearing substrate is required.

The HD-EPL series film is equipped with a "safe cut HD" (3) cutting system that enables the heating foil to be cut to the desired size every 12.5 cm. The place of cutting the heating film is clearly marked with the dotted lines and scissors, which makes the installation of the heating film convenient and precise.

The heating film is made of high-quality PET components in a "multi-layerHD" (2) system with additional reinforcing layers. The solid construction of the HD-EPL heating film guarantees a very long service life and failure-free operation of the entire heating system.

The silver paste used in the heating film is made in the "silver ladderHD" (4)  ladder technology, thus ensuring a safe connection to the electricity network and the proper functioning of the heating film.



  1. Floor panels finishing.
    The top floor covering with a decorative and functional function that meets the relevant abrasion resistance standards. The heating system mainly uses laminated panels and wooden sandwich planks mounted in a floating form on the so-called lock.
  2. Vapor barrier foil.
    LDPE vapor barrier foil, 0.2 mm thick, protects the heating foil against mechanical damage resulting from the friction process during shrinkage and expansion of the floor panels. The vapor barrier foil also protects the heating system against random events such as flooding with water or other substances in liquid form.
  3. Heat Decor heating film.
    The Heat Decor infrared heating film is the main heat carrier in underfloor heating. The heating foil is connected to the electric wires with installation connectors and then connected to the room thermostat equipped with a built-in air temperature sensor and an external floor temperature sensor. The heating foil installed directly under the floor panels in dry rooms does not require grounding.
  4. Heat Decor insulating mat.
    The insulating mat serves as thermal insulation, because the heating foil emits heat in two directions. In addition, the insulating mat compensates for unevenness in the floor and acts as an acoustic insulation. The Heat Decor insulating mat also plays a very important role as a substrate for the heating foil, in which we hide the fasteners of the heating foil, such as installation connectors with self-vulcanizing tape. We also make cuts in the insulating mat, in which we lead the electric wires supplying the heating foil.
  5. Vapor barrier foil.
    0.2 mm thick vapor barrier foil protects the heating system and floor panels against the influence of moisture. The even vapor barrier surface protects the heating foil and floor panels against the possible process of moisture arising from the capillary beam as a result of improperly made insulation of the foundation, walls or screed, as well as the result of forest incidents such as flooding with water.
  6. Floor (concrete screed, OSB / MFP boards)
    The floor is a load-bearing structural element on which all layers of the heating system are laid. The floor can be a concrete base, a wooden structure or a structure made of OSB or MFP boards meeting the standards of bearing capacity and building structures.
