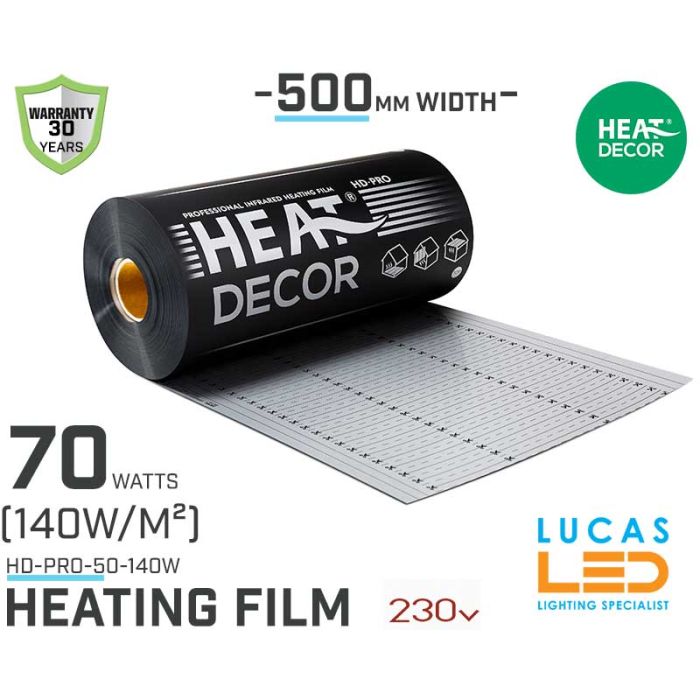

Heating film HD PRO • 70 W/lm • 500mm WIDTH • Heat mat • 30y Warranty • (140w/m²) • Heat Decor • HD-PRO-50

Product description - HDPRO50 heating film 140W/m² with connected wires – 0.5m

The Heat Decor heating film set is designed for electric floor and wall heating of rooms. Heating film sets have a basic assortment for the implementation of infrared heating installations. Heating film sets come in variants that differ in terms of the surface of the heating film and the amount of installation assortment matched to the film surface. Prepared sets of Heat Decor heating films enable quick and convenient selection of the necessary materials for the installation of floor and wall heating in the room.

The Heat Decor heating film model HDPRO50 has a modern heating structure which guarantees even heat distribution and safe and trouble-free operation.

Heat Decor heating film the HD-PRO series
(Professional infrared heating film)

For HD-PRO heating films, we have developed an innovative structure based on the "full carbon-h HD" (2) graphite technology, the matrix of which is made in a shape similar to a mesh applied on the entire surface of the film. The HD-PRO film emits infrared heat over the entire surface of the heating film between the copper stripes. Such heat distribution means that the linings used, for example, on the floor above the film, will heat up evenly.

HD-PRO heating films have a thickness of 0.500 mm and are made of reinforced PET laminates in the "multi-layerHD " (1) system on both sides, characterized by high resistance to mechanical damage structure and increased electrical insulation.

HD-PRO series films can be cut even every 1 cm on the designated lines marked with the scissors icon. The place where the heating film is cut is clearly visible. HD-PRO heating films at the intersection between the copper stripes should be insulated with a special HD-PRO series insulation tape.

Durable and very strong construction of the HD-PRO heating film made of double reinforced PET laminates guarantees an exceptionally long service life and failure-free operation of the entire heating system. The safe electrical connection is ensured by the film used a heating silver paste made in the "silver ladderHD " (3) ladder technology, which translates into the stable functioning of the heating film.

1. Floor panels finishing.
   The top floor covering with a decorative and functional function that meets the relevant abrasion resistance standards. The heating system mainly uses laminated panels and wooden sandwich planks mounted in a floating form on the so-called lock.
2. Vapor barrier foil.
   LDPE vapor barrier foil, 0.2 mm thick, protects the heating foil against mechanical damage resulting from the friction process during shrinkage and expansion of the floor panels. The vapor barrier foil also protects the heating system against random events such as flooding with water or other substances in liquid form.
3. Heat Decor heating film.
   The Heat Decor infrared heating film is the main heat carrier in underfloor heating. The heating foil is connected to the electric wires with installation connectors and then connected to the room thermostat equipped with a built-in air temperature sensor and an external floor temperature sensor. The heating foil installed directly under the floor panels in dry rooms does not require grounding.
4. Heat Decor insulating mat.
   The insulating mat serves as thermal insulation, because the heating foil emits heat in two directions. In addition, the insulating mat compensates for unevenness in the floor and acts as an acoustic insulation. The Heat Decor insulating mat also plays a very important role as a substrate for the heating foil, in which we hide the fasteners of the heating foil, such as installation connectors with self-vulcanizing tape. We also make cuts in the insulating mat, in which we lead the electric wires supplying the heating foil.
5. Vapor barrier foil.
   0.2 mm thick vapor barrier foil protects the heating system and floor panels against the influence of moisture. The even vapor barrier surface protects the heating foil and floor panels against the possible process of moisture arising from the capillary beam as a result of improperly made insulation of the foundation, walls or screed, as well as the result of forest incidents such as flooding with water.
6. Floor (concrete screed, OSB / MFP boards)
   The floor is a load-bearing structural element on which all layers of the heating system are laid. The floor can be a concrete base, a wooden structure or a structure made of OSB or MFP boards meeting the standards of bearing capacity and building structures.
