Microwave Motion Sensor - detector - wall mounting - IP20 indoor - auto function - On/Off - MERGE MW

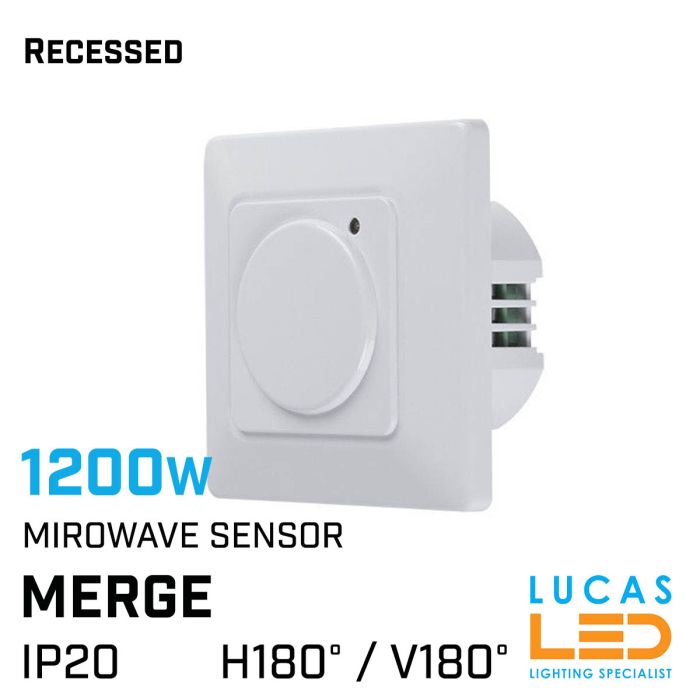

Microwave Motion Sensor MERGE MW-L - max. 1200W - IP20 indoor - sensor working angle H180°/ V180° -  wall mounted - Movement detector - Light Switch.

Wall sensor MERGE MW detector is an aesthetic and functional solution. The maximum detection range comes to 9 metres. You can set adjustments of the lighting time and light intensity level at which the detector works. Our new motion sensors find their use in public buildings, private homes, and wherever you need alarm system.

MERGE MW-L   is a microwave motion sensor mounted to a can with a diameter of 60mm. It features a high operating frequency and a very good motion. The sensor is equipped with a set time period of the receiver sensitivity of the light intensity and coverage.

Another advantage of this sensor is the AUTO, ON, OFF, wherein: AUTO turns the sensor turns ON the receiver which is connected to the sensor OFF turns on / off disconnects the receiver.

- maximum movement detection up to 9m

- maximum horizontal angle of operation of the motion sensor - 180°

- maximum vertical angle of operation of the motion sensor 180°

- light on time adjustable from 10s to 12min

- capability to set the light intensity of the environment in which the device works

- motion detection 0,6…1,5m/s

GENERAL DATA:

Colour: white
Place of assembly: Recessed mount in the wall
Place of application: Indoors
Micro-interval between relay contacts: yes
Length [mm]: 80
Width [mm]: 47
Height [mm]: 80
Sensitivity regulation: yes

TECHNICAL DATA:

Rated voltage [V]: 220-240 AC
Rated frequency [Hz]: 50
Class of protection against electric shock: II
Material: plastic
Ambient temperature range to which the product can be exposed: 5÷25
Sensor type: microwave
Connection type: Terminal block
Range of sections of wires used [mm²]: 0,75÷1,5
Sensor-operation time [second-minute]: 10-12
Sensor-operation frequency [MHz]: 5,8
sensor working angle [°]: 180
Maximum operating time [min]: 12
Minimum operating time[s]: 10
Maximum power [VA]: 1200
Illumination-level setpoint by which the sensor detects
movement [lx]: 3-2000
IP class: 20
Sensor range[m]: max 9
