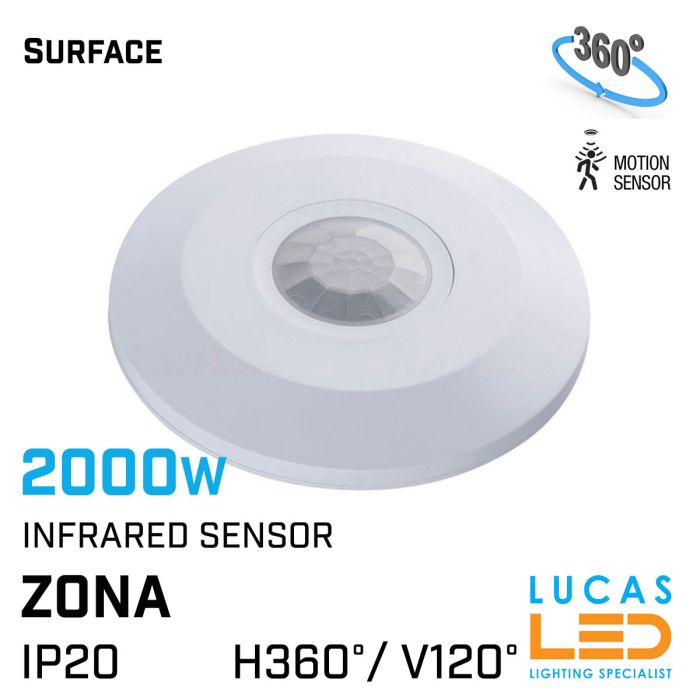

PIR Infrared Slim Motion Sensor - max. 2000W - IP20 - Movement Detector - angle 360° - ZONA Flat

€14.76 €12.00
In stock
SKU
SE-23452
- +

PIR Infrared Motion Sensor ZONA Slim - max. 2000W - IP20 indoor - sensor working angle H360°/ V120° -  ceiling mounted - Movement detector- Light Switch.

ZONA FLAT  a super slim infrared sensor designed for ceiling mounting. The sensor excels in such areas as stairwells, hallways, locker rooms, toilets.



ZONA FLAT is a motion detector with maximum motion detection range of 8m. In turn, its maximum horizontal angle of work comes to 360 degrees. In the ZONA sensor, you can adjust the time of lighting from 10s to 15min as well as set the surrounding light intensity level at which the device will work.
Our new motion sensors find their use in public buildings, private homes, and wherever you need alarm system.



- Maximum movement detection up to 8m
- Maximum horizontal angle of operation of the motion sensor – 360°
- Light on time adjustable from 10s to 15min
- Capability to set the light intensity of the environment in which the device works
- Motion detection 0.6…1.5m/s
- Maximum vertical angle of operation of the motion sensor 120°



Specification:

Colour: white
Place of assembly: ceiling mounted
Place of application: Indoors
Micro-interval between relay contacts: yes
Height [mm]: 25
Diameter [mm]: 115
Rated voltage [V]: 220-240 AC
Rated frequency [Hz]: 50
Class of protection against electric shock: II
Material: plastic
Ambient temperature range to which the product can be exposed: 5÷25
Sensor type: PIR
Connection type: Terminal block
Range of sections of wires used [mm²]: 0,75÷1,5
Sensor-operation time [second-minute]: 10-15
Sensor working angle [°]: H360/V120
Maximum operating time [min]: 15
Minimum operating time[s]: 10
Maximum power [VA]: 2000
Illumination-level setpoint by which the sensor detects movement [lx]: 3-2000
IP class: 20
Sensor range[m]: max 8







More Information
Watts 2000W
Voltage 220V - 240V
Dimmable NO
IP Rated IP20
Full Fitting Yes
Body colour White
Shape Round / Cylinder
Room Kitchen, Living / Dining, Bedroom, Hallway, Kids room, Bathroom, Office
