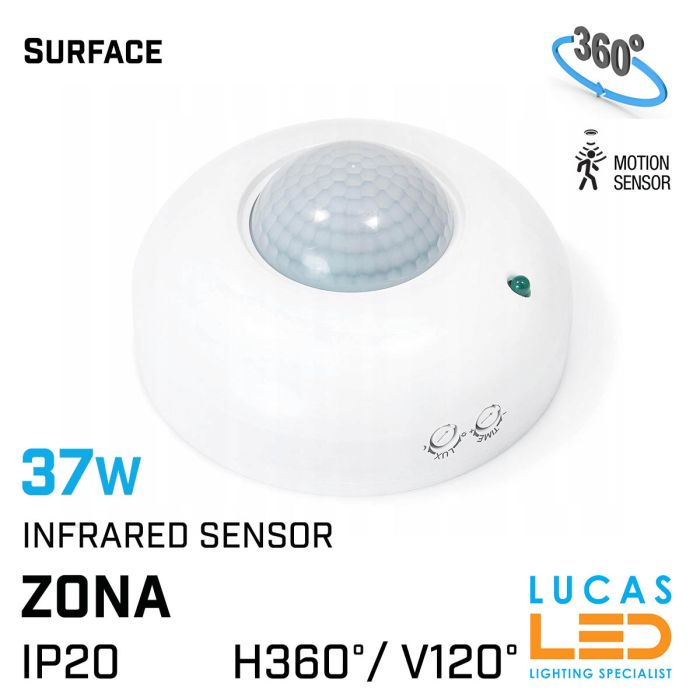

PIR Infrared Motion Sensor 37W - IP20 indoor - ceiling - switch light - ZONA JQ

37W PIR Infrared Motion Sensor ZONA JQ  - IP20 indoor - sensor working angle H360°/ V120° -  ceiling mounted - Movement detector- Light Switch.

ZONA JQ  a super  infrared sensor designed for ceiling mounting. The sensor excels in such areas as stairwells, hallways, locker rooms, toilets.

ZONA JQ is a motion detector whose maximum detection range comes to 10 metres. You can set adjustments of the lighting time and light intensity level at which the detector works.

- Maximum movement detection up to 10m
- Maximum horizontal angle of operation of the motion sensor – 360°
- Maximum vertical angle of operation of the motion sensor – 120°
- Light on time adjustable from 15s to 7min
- Capability to set the light intensity of the environment in which the device works

Specification:

Colour: white
Place of assembly: ceiling mounted
Place of application: Indoors
Micro-interval between relay contacts: yes
Height [mm]: 55
Diameter [mm]: 115
Rated voltage [V]: 220-240 AC
Rated frequency [Hz]: 50
Class of protection against electric shock: II
Material: plastic
Ambient temperature range to which the product can be exposed: -20÷40
Sensor type: PIR
Connection type: Bolt terminal block
Range of sections of wires used [mm²]: 1÷2,5
Sensor-operation time [second-minute]: 15-7
sensor working angle [°]: H360/V120
Maximum operating time [min]: 7
Minimum operating time[s]: 15
Maximum power [VA]: 1200
Illumination-level setpoint by which the sensor detects
movement [lx]: 3-2000
IP class: 20
Sensor range[m]: max 10
