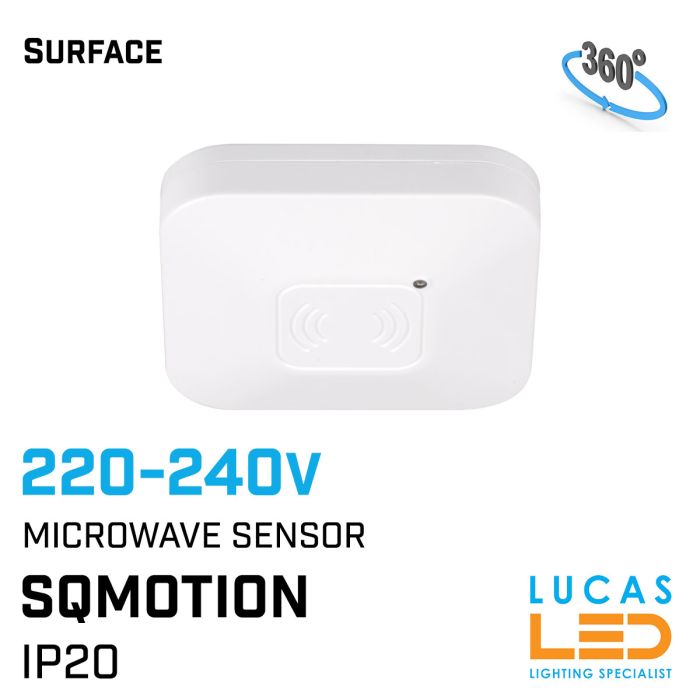

Modern Microwave sensor - IP20 - 50Hz - angle 360° - 220-240 AC - SQMOTION White body

Microwave Motion Sensor SQMOTION - 220/240 AC - IP20 indoor - sensor working angle 360° -  50Hz - surface, ceiling &  wall mounted - Light Switch.

New modern surface microwave sensor SQMOTION detector is an aesthetic and functional solution. Ceiling and wall mounted sensor with the maximum detection range comes to 8 metres. You can set adjustments of the lighting time and light intensity level at which the detector works. Our new motion sensors find their use in public buildings, private homes, and wherever you need alarm system.

GENERAL DATA:

Colour: white
Place of assembly: ceiling mounted, wall mounted
Place of application: Indoors
Micro-interval between relay contacts: yes
Length [mm]: 90
Width [mm]: 90
Height [mm]: 27
Sensitivity regulation: yes

TECHNICAL DATA:

Rated voltage [V]: 220-240 AC
Rated frequency [Hz]: 50
Class of protection against electric shock : II
Material: plastic
Ambient temperature range to which the product can be exposed: 5÷25
Sensor type: microwave
Connection type: Terminal block
Range of sections of wires used [mm²]: 0,75÷1,5
Sensor-operation time [second-minute]: 10-12
Sensor-operation frequency [MHz]: 5,8
sensor working angle [°]: 360
Maximum operating time [min]: 12
Minimum operating time[s]: 10
Maximum power [VA]: 800
Illumination-level setpoint by which the sensor detects movement [lx]: 3-2000
IP class: 20
Sensor range[m]: max 8
