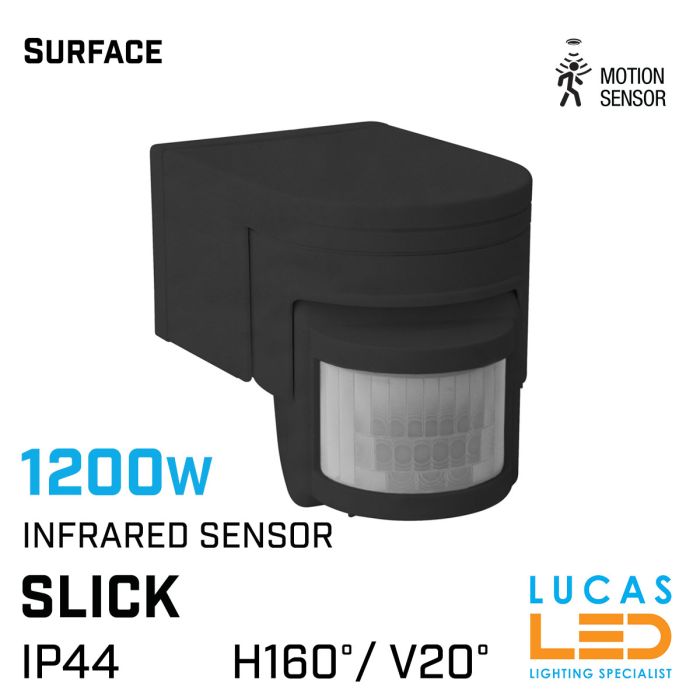

Outdoor PIR Infrared Motion Sensor - beam angle H160°/V20° - Sensor range max 12m - IP44 - SLICK Black

€15.99 €13.00
In stock
SKU
SE-8391
  • Buy 10 for €13.59 €11.05 each and save 15%
- +

Outdoor PIR Infrared Motion Sensor SLICK Black - max. 1200W - beam angle H160°/V20° - Sensor range max. 12m - IP44 waterproof - movement detector - surface wall &  ceiling switch light.

Small, simple motion detector SLICK with a 160° detection angle. It is suitable for outdoor use due to IP44 waterproof. The sensor head can be swivelled vertically up & down, allowing better alignment. The switching time can be set between 8 seconds and 10 minutes.


GENERAL DATA:

Colour: black
Place of assembly: wall mounted
Place of application: Indoors and outdoors
Micro-interval between relay contacts: yes
Length [mm]: 77
Width [mm]: 125
Height [mm]: 85
Diameter [mm]: 85



TECHNICAL DATA:

Rated voltage [V]: 220-240 AC
Rated frequency [Hz]: 50
Class of protection against electric shock: II
Material: plastic
Ambient temperature range to which the product can be exposed: -10÷40
Sensor type: PIR
Connection type: Bolt terminal block
Range of sections of wires used [mm²]: 1÷2,5
Sensor-operation time [second-minute]: 8-10
sensor working angle [°]: H160/V20
Maximum operating time [min]: 10
Minimum operating time[s]: 8
Maximum power [VA]: 1200
Illumination-level setpoint by which the sensor detects
movement [lx]: 3-2000
IP class: 44
Sensor range[m]: max 12

More Information
Watts 1200
Voltage 220V - 240V
IP Rated IP44
Light Built In Yes
Body colour Black
Shape Square / Cube
